Engine compartment

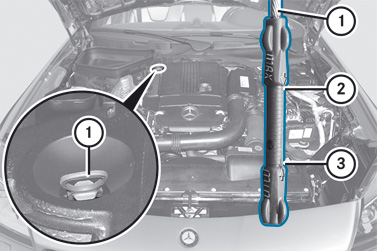

1 Oil dipstick 2 MAX mark 3 MIN mark

Using the oil dipstick to check the oil level Pull out oil dipstick 1 and wipe it clean. Insert it slowly into the dipstick tube to the stop and then pull it out again. The oil level is correct if the level is between MIN mark 3 and MAX mark 2. If necessary, top up the engine oil.
